Create Your First Tizen Mobile Web Application

21 mins read

Create Your First Tizen Mobile Web Application

Mobile Web applications are apps that help you to read messages, play games, shop online, and much more on the go. These applications are developed using various Web-native languages, such as HTML5, Cascading Style Sheets (CSS), and JavaScript.

This page helps you to develop a Tizen Mobile application using Tizen Studio with Web-native languages. You can learn how to customize the UI of a basic app, and run it on an emulator and a target device. In addition, you can publish an app on the Tizen Store.

This page also demonstrates an example of a basic mobile Web application that displays some text and changes color using CSS and HTML.

Prerequisites

Ensure that you download and install Tizen Studio. For more information, see the installation guide.

Develop Mobile Web Application

To develop a mobile Web application that displays text and graphics on the screen, follow these steps:

  1. Create project.

  2. Design UI.

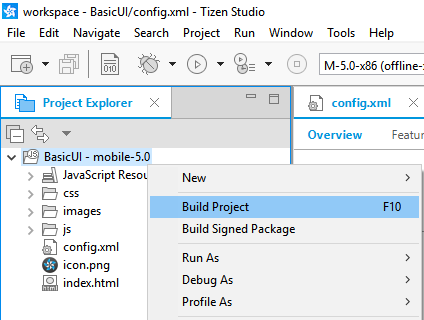

  3. Build application.

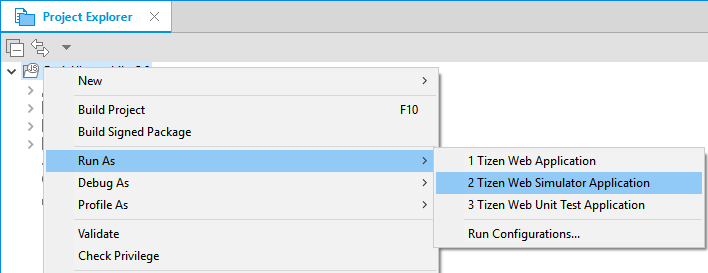

  4. Run application.

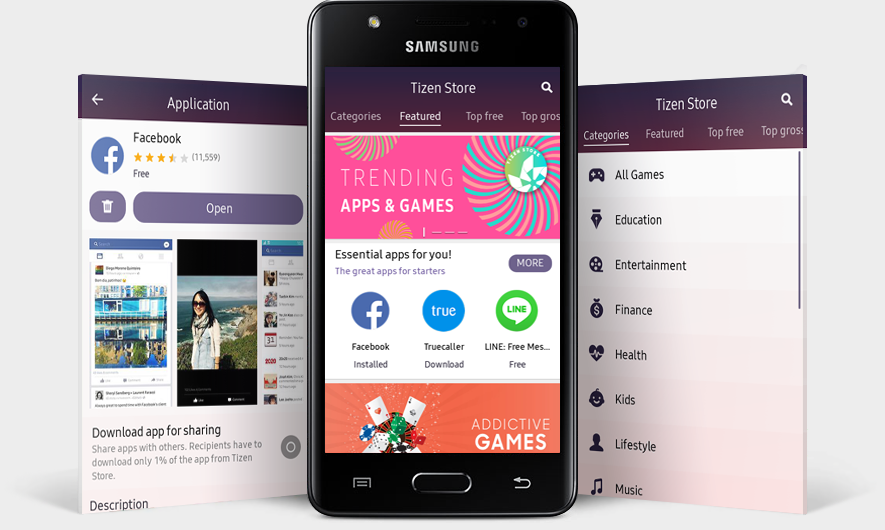

  5. Submit application on Tizen Store.

Tizen Studio includes various Web tools that help you to create new functionalities and design intuitive UI with utmost ease.

Create Project

To create an application project, follow these steps:

  1. Launch Tizen Studio.

  2. In the Tizen Studio menu, select File > New > Tizen Project.

    Creating a new Tizen Web project

  3. In the Project Wizard window that appears, specify the project details.

    Project Wizard is used to create the basic application skeleton with the required folder structure and mandatory files. You can easily create different applications by selecting an applicable template or sample for Project Wizard to use.

    1. Select the Template project type and click Next.

      Selecting the project type

    2. Select the Mobile profile and version from the drop-down list, and then click Next.

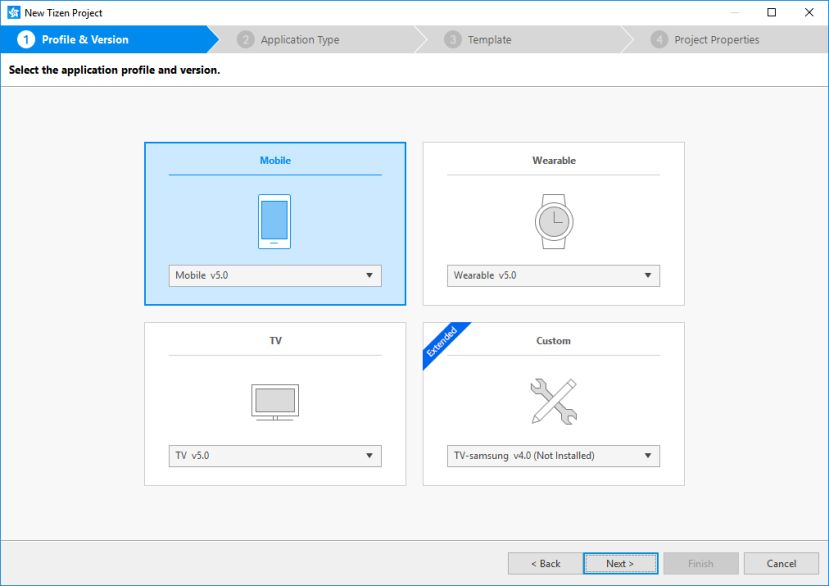

      Selecting the profile and version

    3. Select Web Application as the application type and click Next.

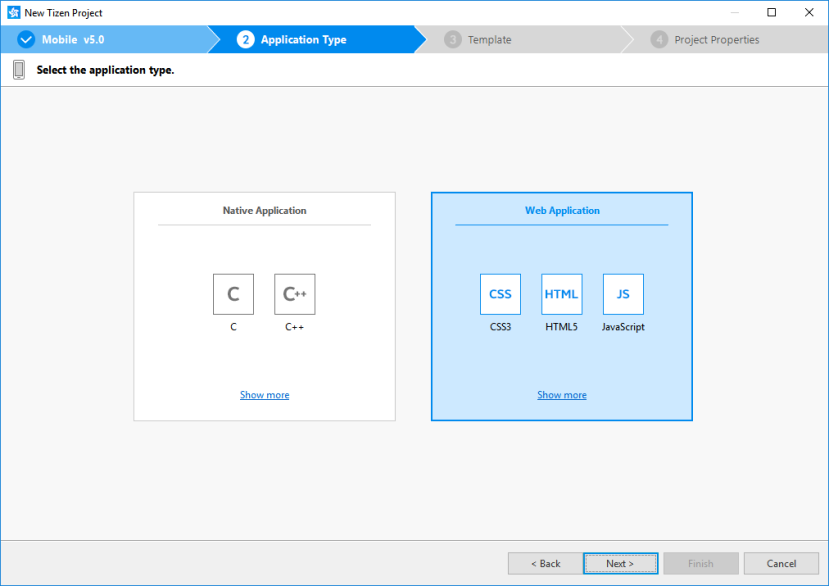

      Selecting the application type

    4. Select the Basic UI template and click Next.

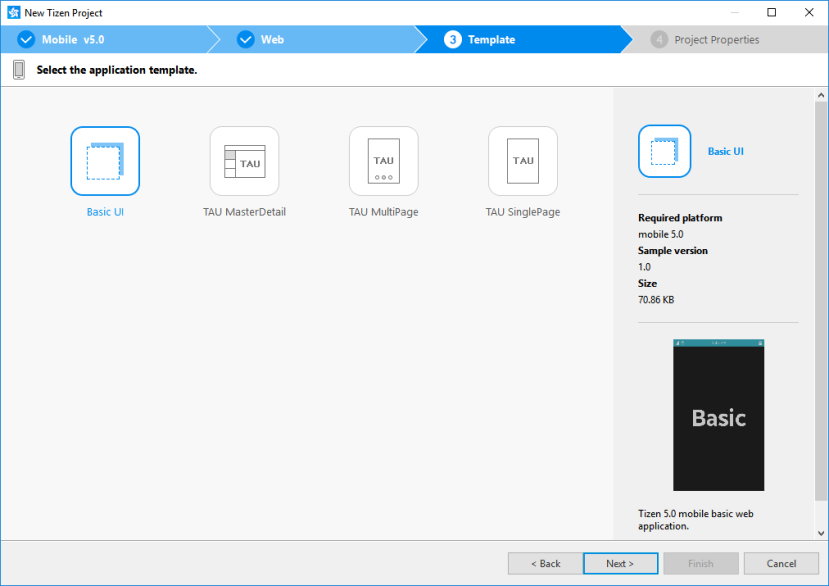

      Selecting the template

    5. Enter a project name that has a maximum length of 3-50 characters and a unique package ID.

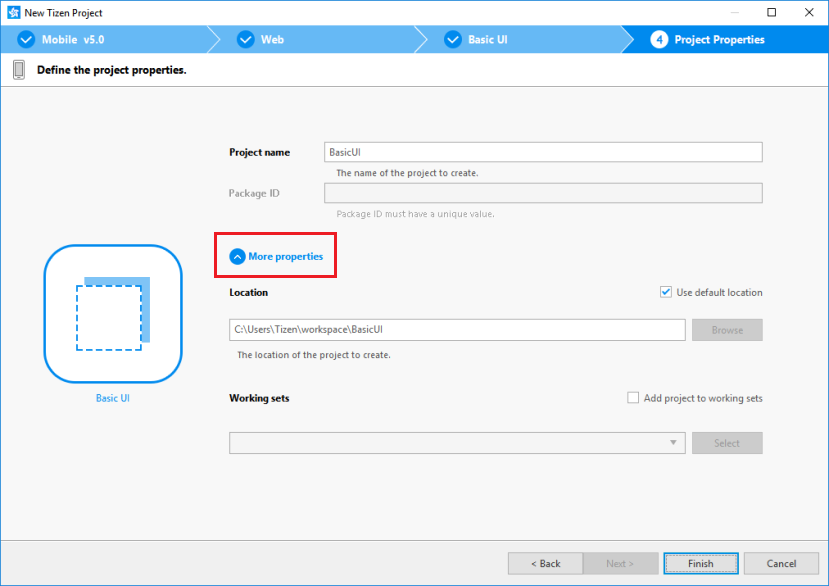

      Defining properties

    6. Click More properties to specify Location and Working sets, and then click Finish.

      Project Wizard sets up your application project and creates the required application files using the default content from the sample. For more information, see Creating Tizen Projects with Tizen Project Wizard.

      Your application project is now created.

You can see the created project in the Project Explorer view.

Application in the Project Explorer

The Project Explorer view contains the following files and folders:

  • css: Folder for CSS files used by the application to style its content.

  • js: Folder for JavaScript files used by the application to implement its functional logic.

  • config.xml: Application configuration file used by the platform to install and launch the application.

  • icon.png: Application icon file used by the platform to represent the application.

  • index.html: Main HTML file for the layout of the application screen.

Note

In this Create Project example, no configuration changes are required.

Manage Application Configuration

To view and modify the application configuration, follow these steps:

  1. In the Project Explorer view, double-click the config.xml file of the application.

  2. In the Web application configuration editor that appears, you can view and modify the configuration details.

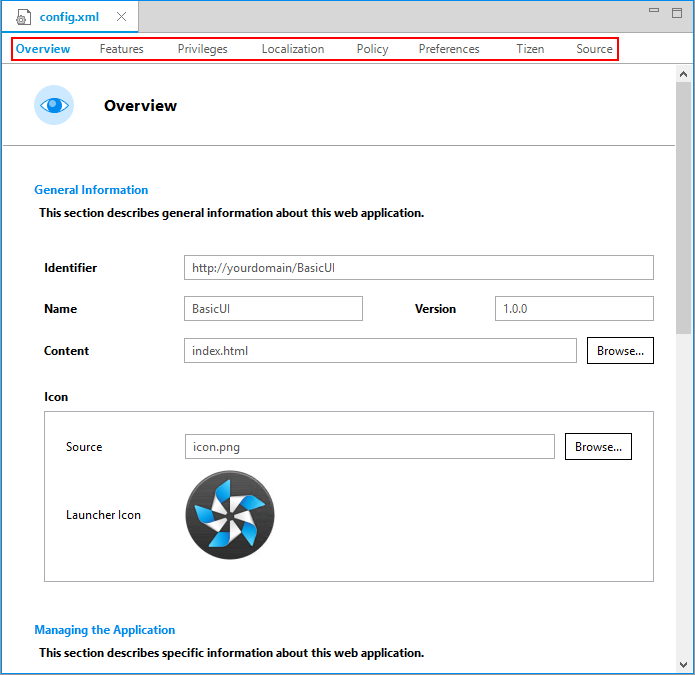

    Configuring the application

    • Overview: Defines general information, such as the name and icon of the application.

    • Features: Defines required software and hardware features. This information is used for application filtering in Tizen Store.

    • Privileges: Defines the security-sensitive APIs or API groups accessed and used by the application.

    • Localization: Defines localized values for the application name, description, and license.

    • Policy: Requests network resource permissions to access external network resources.

    • Preferences: Defines name-value pairs that can be set or retrieved through the application.

    • Tizen: Edits the Tizen schema extension properties of the application.

    • Source: Views and edits the source code of the config.xml file. Changes made and saved on the other tabs are reflected in the source code and vice versa.

    Note

    The config.xml file must conform to both the XML file format and the W3C specification requirements. Editing the file in the Source tab is intended for advanced users only.

  3. To save the changes, in Tizen Studio, select File > Save All.

For more information, see Setting the Web Application Configuration.

Design UI

The mobile application created with the Basic UI template has a simple user interface. The text component shows the Basic text in the middle of the screen.

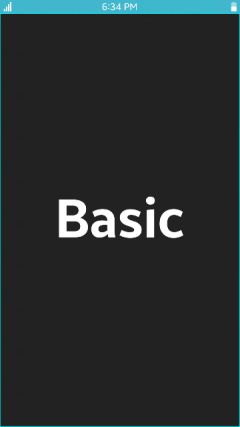

Figure: User interface in the Basic UI template

User interface in the Basic template

The UI is created using W3C/HTML. The W3C specifications provide HTML and CSS features for creating a user interface. With HTML, you can define the structure of the application screens, while CSS allows you to define the look and feel of the screens.

Create Basic UI

The UI in the Basic UI template uses HTML Document Object Model (DOM), which is a structured model to control Web elements. It is an official W3C standard to express the document regardless of platforms or languages, and the foundation of the HTML5 APIs. The template contains the following components:

  • The <html> element is the top-level element of the HTML DOM tree that wraps the entire document. It has <head> and <body> elements as child nodes:

    <!DOCTYPE html>
<html>
   <head>
      <!--Content-->
   </head>
   <body>
      <!--Content-->
   </body>
</html>

  • The <head> element contains the following information that a browser refers to when rendering the body element to interpret the information, such as the title of the HTML document, and the location of the related CSS and JavaScript files:

    • <title>: Defines the title of the document.
    • <meta>: Defines the information, such as encoding, creator, and keywords of the document.
    • <style>, <link>: Sets the styles of the document.
    • <script>, <noscript>: Adds functions to the document.
    <head>
   <meta charset="utf-8"/>
   <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0">
   <meta name="description" content="Tizen Mobile Web Basic Template"/>

   <title>Tizen Mobile Web Basic Application</title>

   <link rel="stylesheet" type="text/css" href="css/style.css"/>
   <script src="js/main.js"></script>
</head>

  • The <body> element defines the area displaying content on the browser screen. In this case, it defines the Basic text component:

    <body>
   <div id="main" class="page">
      <div class="contents">
         <span id="content-text">Basic</span>
      </div>
   </div>
</body>

Modify Existing Style Components with CSS

CSS specifies the layout and styling of the Web application.

Following are the various ways to connect CSS with HTML:

  • style attribute in an HTML element.
  • <link> element in the <head> element.
  • @import attribute in the CSS area.
  • <style> element in the <head> element.

Applying the style of an HTML element directly with the style attribute has the highest priority. On the other hand, creating a separate CSS file and managing it separately is convenient when it comes to applying changes in the future.

In the Basic UI template, the CSS file is connected to the HTML file using a <link> element in the <head> element:

<head>
   <meta charset="utf-8"/>
   <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0">
   <meta name="description" content="Tizen Mobile Web Basic Template"/>

   <title>Tizen Mobile Web Basic Application</title>

   <link rel="stylesheet" type="text/css" href="css/style.css"/>
   <script src="js/main.js"></script>
</head>

The following lines in the css/style.css file describe the styling of the text in an element with the content-text ID:

  • css/style.css:

    #content-text {
   font-weight: bold;
   font-size: 5em;
}

  • index.html:

    <body>
   <div id="main" class="page">
      <div class="contents">
         <span id="content-text">Basic</span>
      </div>
   </div>
</body>

By default, the text appears in white color #ffffff as defined for the <body> element. You can change the color by changing the value of the content-text ID in the CSS code. In the following example, the color is changed to red #ff0000:

#content-text {
   font-weight: bold;
   font-size: 5em;
   color: #ff0000;
}

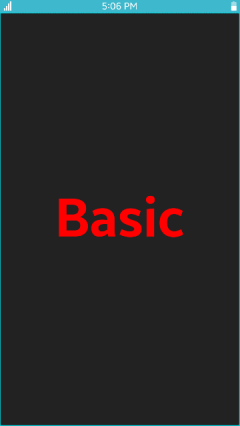

Screen with a new text color

Add Components and Functionalities with TAU

Tizen Advanced UI (TAU) is a Web UI library that enables you to create and manage various kinds of UI components. The components represent visual UI elements, such as button, checkbox, or list view. You can use the UI components to interact with the application screens. For more information, see Tizen Advanced UI and Tizen Advanced UI framework Reference.

TAU helps you to create Tizen Web applications easily. The following figure shows the role of TAU and its relation to the Web application:

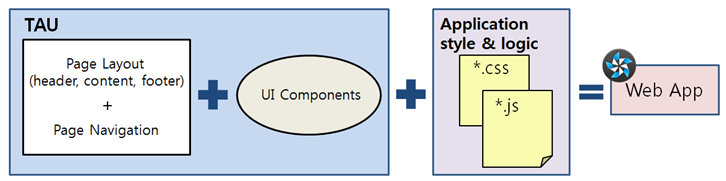

TAU and the Web application

The UI in the Basic UI template contains only one visible text component. You can also create a UI with additional components.

To create a UI with additional components, screens, and functionalities, use the TAU library in your application. The following example shows how to create pages, a list on the page, and navigate between the pages.

To create a Web application and design its UI with TAU, follow these steps:

  1. Install TAU templates.

    In Tizen Studio, select Tools > Package Manager. In the Package Manager window that appears, select Main SDK > 5.0 Mobile > Advanced > TAU (IDE).

    Note

    By default, the TAU (IDE) package is installed.

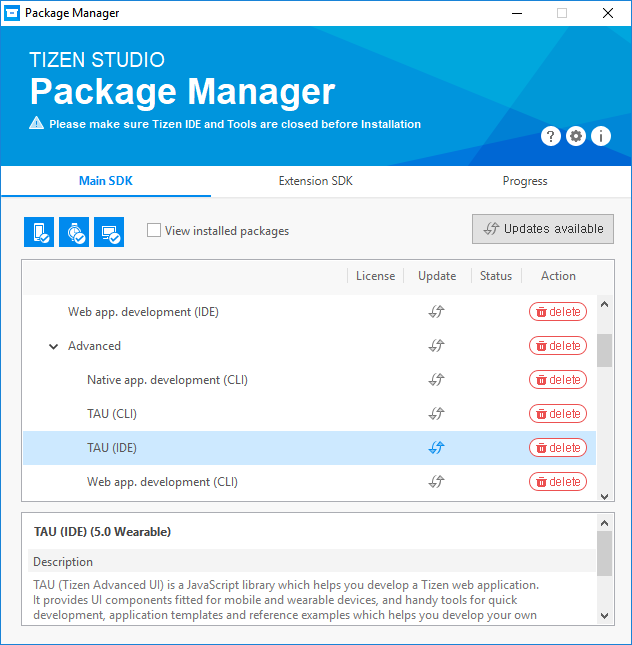

    TAU package installation

  2. Create a project that uses the TAU library.

    To create a project with a TAU SinglePage template, follow these steps:

    1. In the Tizen Studio menu, select File > New > Tizen Project.

    2. Select Template > Mobile v5.0 > Web Application > TAU SinglePage.

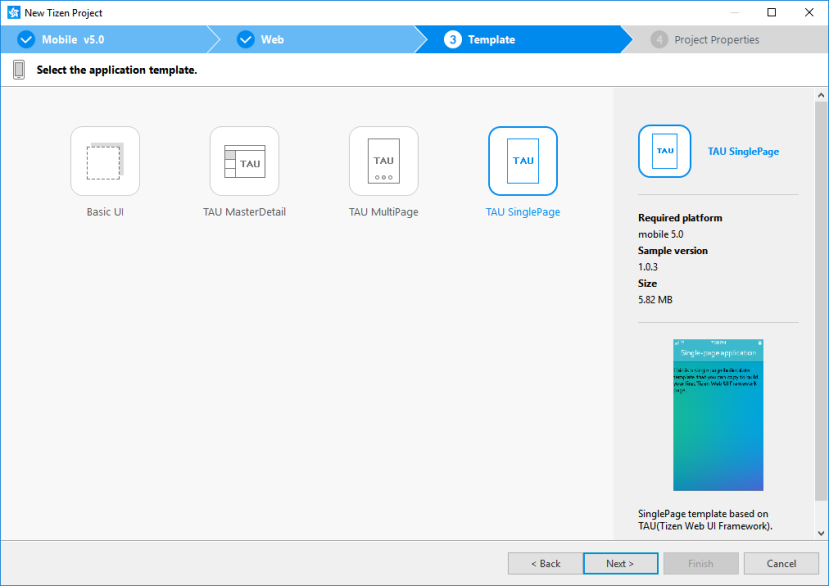

      Creating a new project

    3. Enter a project name that has a maximum length of 3-50 characters and a unique package ID.

      Changing properties

    4. Click More properties to specify Location and Working sets, and then click Finish.

      You can see the created project in the Project Explorer view.

      The TAU library is located in the lib folder.

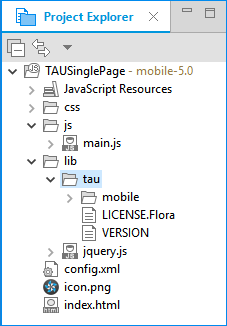

      TAU library directory

    You can create a new project using the TAU template or the TAU sample application included in Tizen Studio. You can also add the required TAU libraries to any existing Web project.

    To import TAU manually to an existing project in your HTML file, add the following elements to load the basic TAU libraries:

    • Import the TAU library tau(.min).js with the <script> element.

      This element is mandatory as the TAU library uses the TAU JavaScript Interface.

    • Import the TAU theme tau(.min).css with the <link> element.

      This element is also mandatory as you need the TAU library to use the TAU CSS.

    For better performance, all the CSS files must be included in the <head> element and all script elements must be included in the </body> element. The following example shows the TAU SinglePage template where the application title has been modified:

    <!DOCTYPE html>
<html>
   <head>
      <meta name="viewport" content="width=device-width, user-scalable=no"/>
      <link rel="stylesheet" href=".lib/tau/mobile/theme/default/tau.css"/>
      <link rel="stylesheet" type="text/css" href="css/style.css"/>
      <title>Hello TAU</title>
   </head>
   <body>
      <!--HTML BODY CONTENT-->
      <script type="text/javascript" src="lib/tau/mobile/js/tau.js"></script>
      <script src="./js/main.js"></script>
   </body>
</html>

    To include your own scripts and style sheets, you can add additional <script src="<CUSTOM_LIBRARY_OR_JS_FILE>"> or <link rel="stylesheet" src="<CUSTOM_CSS>"> elements. However, place them after the default <script> element, so that you can use any TAU APIs provided by the default libraries.

  3. Create the first page.

    1. Open the index.html file. By default, the <body> element of the HTML file contains different <div> elements. Starting from <div> element with the ui-page class, which contains a header <div> element with the ui-header class and a content section <div> element with the ui-content class:

       <body>
    <div class="ui-page" id="main">
       <div class="ui-header">
          <h1>Single-page application </h1>
       </div><!-- /header -->

       <div class="ui-content">
          <p>This is a single page boilerplate template that you can copy to build your first Tizen Web UI Framework page.</p>
       </div><!-- /content -->
    </div><!-- /page -->

    <script type="text/javascript" src="./lib/tau/mobile/js/tau.js"></script>
    <script src="./js/main.js"></script>
 </body>

      To layout the page, edit the contents of the header and content blocks, and add a footer with the ui-footer class:

       <div class="ui-page" id="main">
    <div class="ui-header" data-position="fixed">
       <h1>Hello World</h1>
    </div>

    <div class="ui-content">
       <p>This is content area</p>
    </div>
    <div class="ui-footer">
       <p>This is footer area</p>
    </div>
 </div>

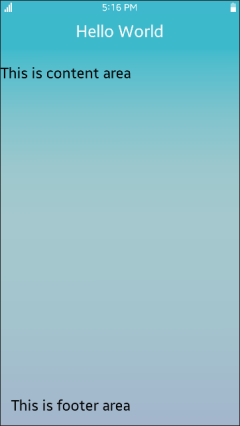

      Hello World page

    2. You can add your own styles for the content and footer areas by defining id attributes:

      <body>
   <div class="ui-page" id="main">
      <div class="ui-header" data-position="fixed">
         <h1>Hello World</h1>
      </div>

      <div class="ui-content" id="contentArea">
         <p>This is content area</p>
      </div>
      <div class="ui-footer" id="footerArea">
         <p>This is footer area</p>
      </div>
   </div>

   <script type="text/javascript" src="./lib/tau/mobile/js/tau.js"></script>
   <script src="./js/main.js"></script>
</body>

      In the style.css file, add CSS styles for the new id attributes:

      #contentArea {
   background-color: white;
}
#footerArea {
   background-color: blue;
}

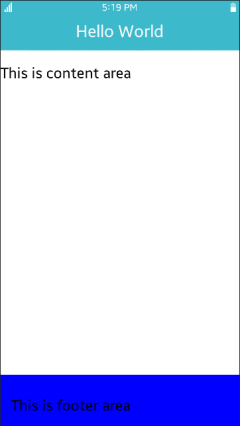

      Hello World page with custom styles

  4. Create additional content for the first page:

    • Add a list.

      You can add a list with the TAU list view component using the <ul> element and the ui-listview class:

      • Create a basic static list by overwriting the page content in the index.html file using the following code:

        <body>
   <div class="ui-page" id="main">
      <div class="ui-header" data-position="fixed">
         <h1>Hello TAU</h1>
      </div>
      <div class="ui-content">
         <ul class="ui-listview">
            <li class="ui-li-static">List Item1</li>
            <li class="ui-li-static">List Item2</li>
            <li class="ui-li-static">List Item3</li>
            <li class="ui-li-static">List Item4</li>
         </ul>
      </div>
   </div>

   <script type="text/javascript" src="./lib/tau/mobile/js/tau.js"></script>
   <script src="./js/main.js"></script>
</body>

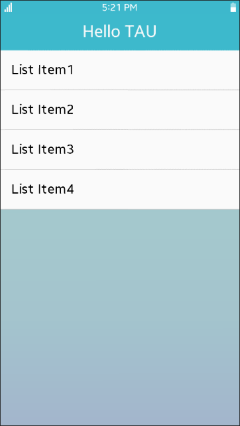

        TAU list

      • For advanced options, you can also create an anchor list view. These items can be clicked to navigate to other pages or show a popup. The list items that are defined with the <li> elements in the following code, differ from the basic list by having an additional <a> element in them:

        <div class="ui-page" id="main">
   <div class="ui-header" data-position="fixed">
      <h1>Hello TAU</h1>
   </div>
   <div class="ui-content">
      <ul class="ui-listview">
         <li class="ui-li-anchor"><a href="#">Anchor List 1</a></li>
         <li class="ui-li-anchor"><a href="#">Anchor List 2</a></li>
         <li class="ui-li-anchor"><a href="#">Anchor List 3</a></li>
         <li class="ui-li-anchor"><a href="#">Anchor List 4</a></li>
      </ul>
   </div>
</div>

        TAU anchor list

    • Add a button in the footer.

      When you implement the Tizen mobile Web applications, you can use the ui-footer class as a footer area. You can add buttons to the footer area, by using the <button> elements:

      <div class="ui-page" id="main">
   <div class="ui-header" data-position="fixed">
      <h1>Hello TAU</h1>
   </div>
   <div class="ui-content">
      <!--Content area with a list-->
   </div>
   <div class="ui-footer">
      <button>OK</button>
   </div>
</div>

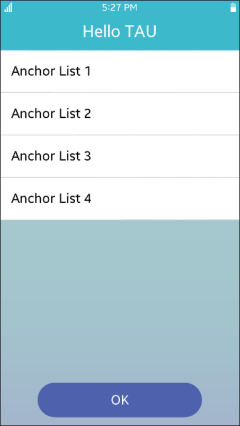

      TAU button

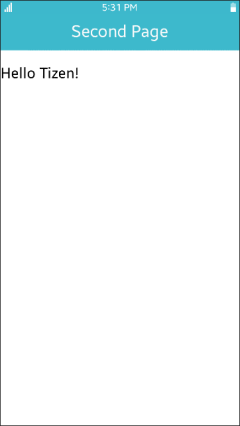

  5. Create the second page.

    1. In Tizen Studio, create a new HTML file and name it second.html.

      Add the following content to the file to create a title text in the header and a Hello Tizen! text in the content area:

       <!DOCTYPE html>
 <html>
    <head>
       <title>Hello TAU</title>
       <link rel="stylesheet" href="lib/tau/mobile/theme/default/tau.css">
    </head>
    <body>
       <div class="ui-page" id="second">
          <div class="ui-header" data-position="fixed">
             <h1>Second Page</h1>
          </div>
          <div class="ui-content" id="secondPage">
             <p>Hello Tizen!</p>
          </div>
       </div>
       <script type="text/javascript" src="lib/tau/mobile/js/tau.js" data-build-remove="false"></script>
    </body>
 </html>

    2. Decorate the page in the same way as index.html. In the style.css file, add the following CSS style to set the content area background to white:

      #secondPage {
   background-color: white;
}

      Second page

  6. Navigate between the pages.

    • To navigate from the first page to the second, in the anchor list, add the path to the second page in the <li><a href> element:

      <ul class="ui-listview">
   <li class="ui-li-anchor"><a href="second.html">Go to Second Page</a></li>
   <li class="ui-li-anchor"><a href="#">Anchor List 2</a></li>
   <li class="ui-li-anchor"><a href="#">Anchor List 3</a></li>
   <li class="ui-li-anchor"><a href="#">Anchor List 4</a></li>
</ul>

      Run the application in the emulator, and click the Go to Second Page link to move from the index.html page to the second.html page.

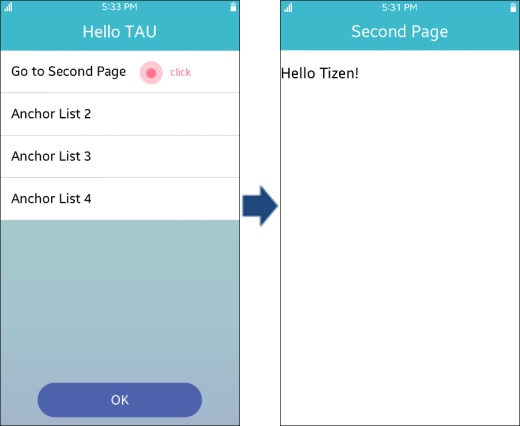

      Move to the second page

    • To navigate from the second page back to the first, click the back key.

      You can navigate from one page to the other using the <a href="PAGE_FILE_NAME"> element. However, you cannot navigate back. To return to the first page, you must add additional code in a JavaScript file.

      To create a new app.js JavaScript file, follow these steps:

      1. In the index.html file, add <script src="app.js"></script> in the </body> element:

         <body>
    <div class="ui-page" id="main">
       <div class="ui-header" data-position="fixed">
          <h1>Hello TAU</h1>
       </div>
       <div class="ui-content">
          <!--Content-->
       </div>
       <div class="ui-footer">
          <button>OK</button>
       </div>
    </div>
    <script type="text/javascript" src="lib/tau/mobile/js/tau.js"></script>
    <script src="app.js"></script>
 </body>

      2. In the Project Explorer view, right-click the project and select New > JavaScript Source File.

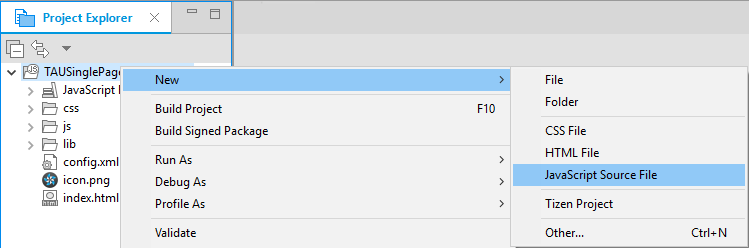

        Create a new JavaScript file

      3. Type the file name as app.js and click Finish.

      4. In the app.js file, all kinds of logic can be added to the application. In this case, add the code for returning to the previous page when the back key is pressed:

        (function() {
    window.addEventListener('tizenhwkey', function(ev) {
        if (ev.keyName === 'back') {
            var page = document.getElementsByClassName('ui-page-active')[0],
                pageid = page ? page.id : '';

            if (pageid !== 'main') {
                window.history.back();
            }
        }
    });
}());

    • To exit the application.

      You can make your application exit by adding more lines to the app.js file.

      You have to consider the fact that when you click the back key, the application can only exit if it is showing the first page. Therefore, if the application is showing the second page, then the application must return to the first page.

      The following code shows how to handle the back key input with page navigation and application exit. Similar code is included in the TAU SinglePage project template main.js file by default:

      (function() {
    window.addEventListener('tizenhwkey', function(ev) {
        if (ev.keyName === 'back') {
            var page = document.getElementsByClassName('ui-page-active')[0],
                pageid = page ? page.id : '';

            if (pageid === 'main') {
                try {
                    tizen.application.getCurrentApplication().exit();
                } catch (ignore) {}
            } else {
                window.history.back();
            }
        }
    });
}());

Build Application

After you have created the application project, you can implement the required features. In this Create Project example mentioned in this page, only the default features from the project template are used. Hence, no code changes are required.

When you build your application, the building process performs a validation check. It also compiles the JavaScript and the CSS files.

You can build the application in one of the following ways:

  • Automatically

    The automatic build means that Tizen Studio automatically builds the application whenever you change a source or resource file, and save the application project.

    To use the automatic build, follow these steps:

    1. In the Project Explorer view, select the project.

    2. In the Tizen Studio menu, select Project > Build Automatically.

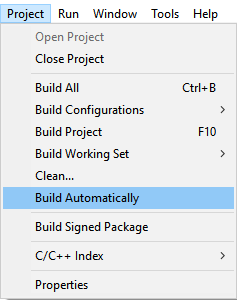

      Using the automatic build

    You can toggle the automatic build on and off by selecting Project > Build Automatically again.

  • Manually

    The manual build means that you determine when an application is built.

    To manually build an application, in the Project Explorer view, right-click the project and select Build Project.

    Manually building the application

    Alternatively, in the Project Explorer view, you can select the project and Press F10.

After you have built the application, you can run the application.

Run Application

You can run the Web application using an emulator, a Web simulator or a target device.

Run Application on Emulator

To run the application on the emulator, follow these steps:

  1. Launch an emulator instance in Emulator Manager:

    1. In the Tizen Studio menu, select Tools > Emulator Manager.

      Emulator Manager

    2. In the Emulator Manager window that appears, select a Mobile emulator from the list and click Launch. If no applicable emulator instance exists, create a new one.

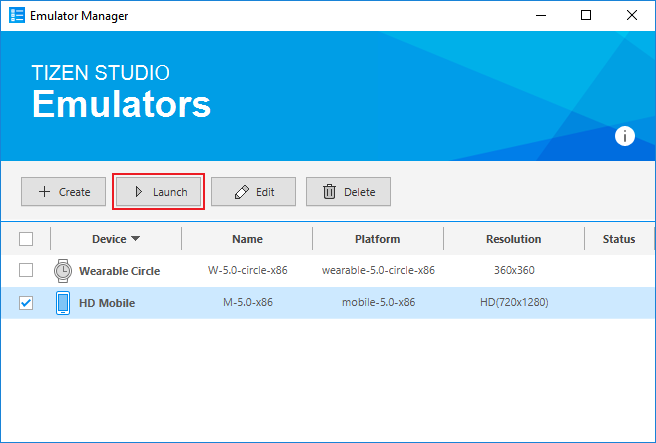

      Launching the emulator

      The emulator is launched. You can also see the new emulator instance and its folder structure in Tools > Device Manager.

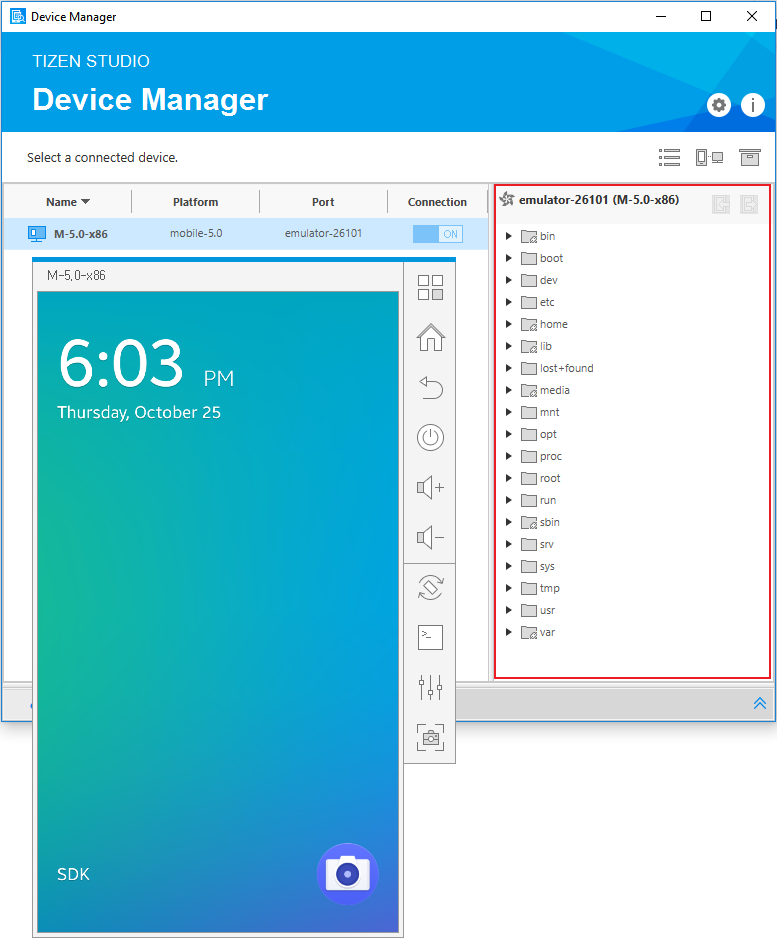

      Emulator

  2. Generate a security profile.

    Before you run the application, you must sign your application package with a certificate profile in Tizen Studio.

  3. Run the application:

    1. In the Project Explorer view, right-click the project and select Run As > Tizen Web Application.

      Running the application

      Alternatively, you can select the project in the Project Explorer view and perform one of the following:

      • Press Ctrl + F11.
      • In the toolbar, click Run application icon.

      If you have created multiple emulator instances, select the instance you want from the drop-down list in the toolbar. If you select an offline emulator, it is automatically launched when you run the application.

      Selecting the emulator to use

    2. Verify whether the application launches on the emulator.

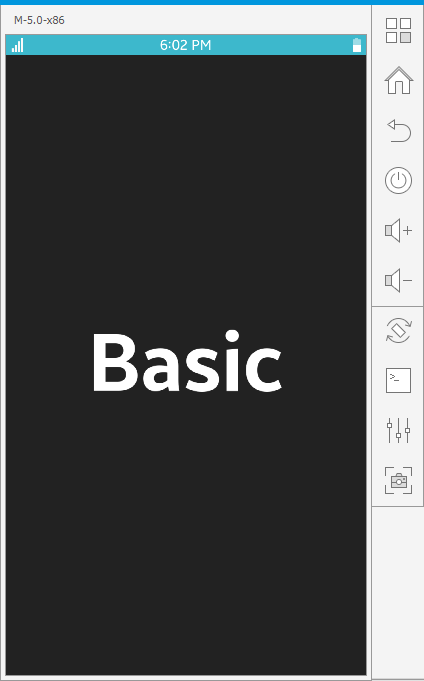

      Application running in the emulator

      While the application is running, you can see the logs, exception messages, and debug information using the Log view in Tizen Studio. To see the logs in Tizen Studio, select Window > Show View > Log.

For more information, see Using Emulator Control Keys, Menu, and Panel and Using Extended Emulator Features.

Run Application on Simulator

To run the application on the Web Simulator, follow these steps:

  1. In the Project Explorer view, right-click the project and select Run As > Tizen Web Simulator Application.

    Running the application

  2. Confirm that the application launches on the Web Simulator.

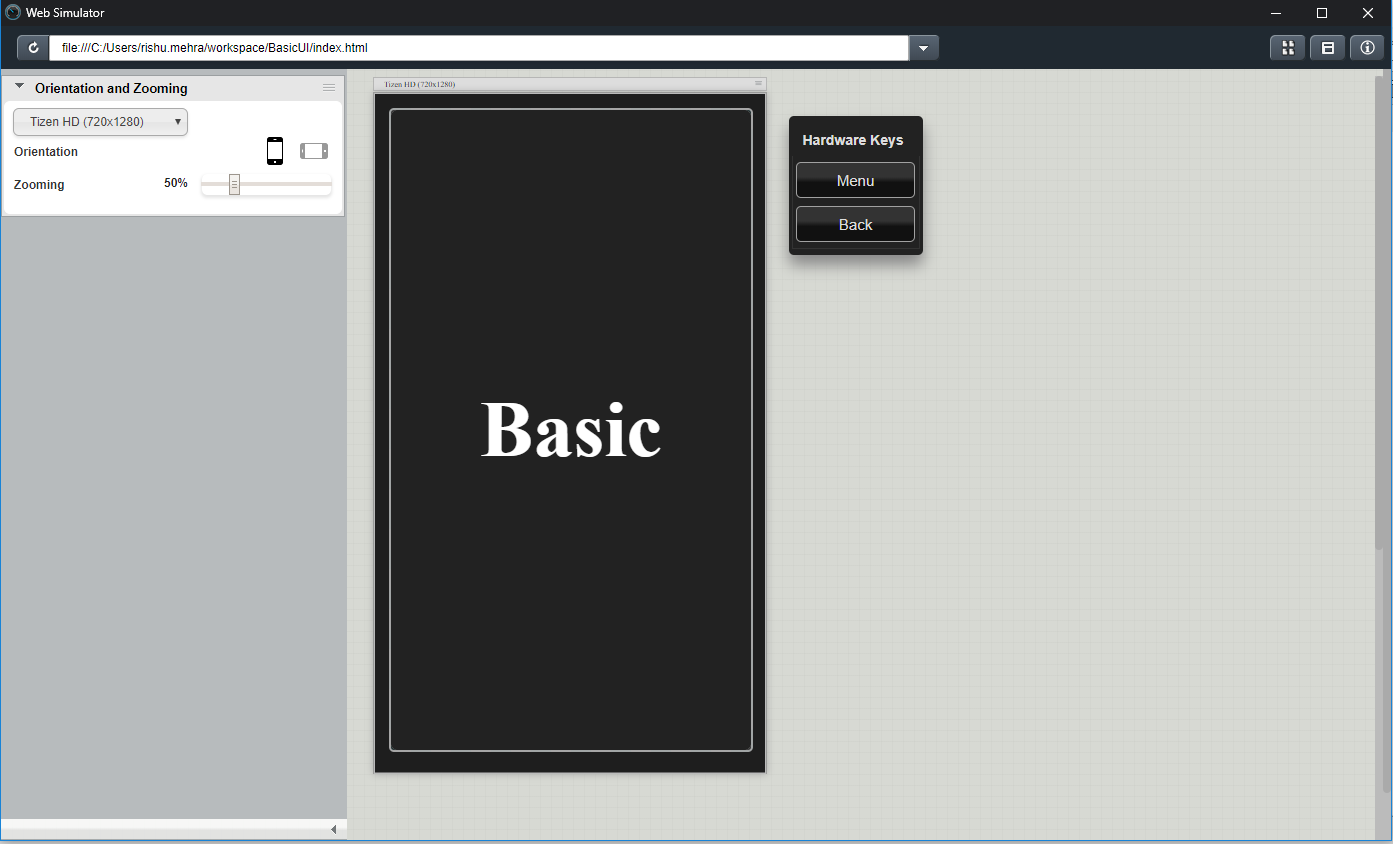

    Application running in the Web Simulator

For more information, see Taking Advantage of Web Simulator Features.

Run on Target Device

To run the application on a target device, follow these steps:

  1. Connect the mobile target device to your computer using a USB cable.

  2. Generate an author certificate.

    Before you run the application, you must sign your application package with a certificate profile in Tizen Studio.

  3. Run the application:

    1. In Tools > Device Manager, select the device.

    2. In Project Explorer view, right-click the project and select Run As > Tizen Web Application.

      Running the application on a target device

      Alternatively, you can select the project in the Project Explorer view and perform one of the following:

      • Press Ctrl + F11.
      • In the toolbar, click Run application icon.

      If you have both connected device and emulator instances, then select the device from the drop-down list in the toolbar.

      Selecting the device to use

    3. Verify whether the application launches on the target device.

      Note

      The application launches with default launch configuration.

      To create and use custom launch configuration, follow these steps:

      1. In the Project Explorer view, right-click the project and select Run As > Run Configurations.

      2. In the Run Configurations window that appears, select New Launch Configuration icon and specify the configuration details.

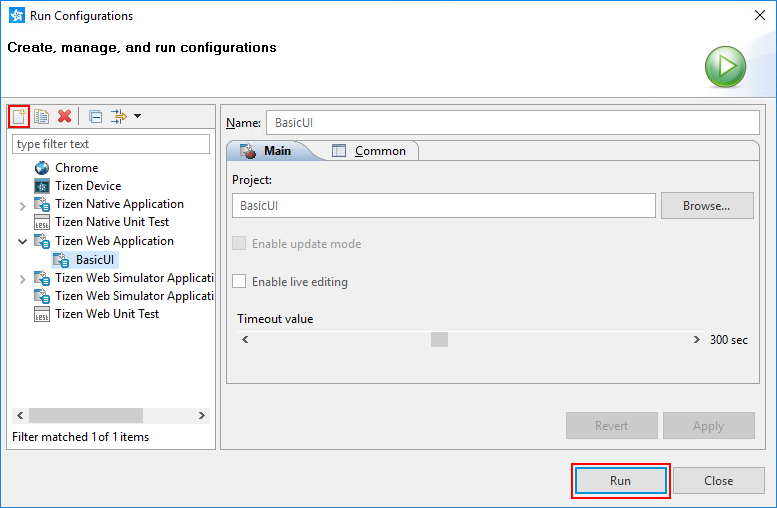

        Run Configurations window

      3. To launch the application, click Run.

Submit Application on Tizen Store

Tizen Store is an app store designed specifically for Tizen mobile device. It caters in over 180 countries to download and install the apps that users want on their Tizen mobile. Tizen Store has a wide variety of useful apps in categories, such as Games, Entertainment, Kids, Finance, Health, Lifestyle, Music, and Social Networking.

Tizen Store

To submit your app on Tizen Store, you need to publish your app on Tizen Seller Office. Tizen Seller Office supports individual developers and companies to sell their apps on Tizen Store. Tizen Seller Office enables you to easily register, manage, and promote your apps, as well as show statistics and payment details.

For more information on Tizen Store and how to distribute your app, check financial reports, and monitor other application management tasks on Tizen Seller Office, see Tizen Distribution Overview.

Copyright © 2020 Tizen Inc. All rights reserved.
